Dunlop design line 9 ½“ x 1 (SBR)

Metric Imperial

Product line:	Dunlop design line
Cover:	Crimped
Space required ⌀D [mm]:	285
Hmin [mm]:	55
Hmax [mm]:	160

Type:	9 ½“ x 1
Material:	SBR
Stroke [mm]:	105
Hstat [mm]:	105

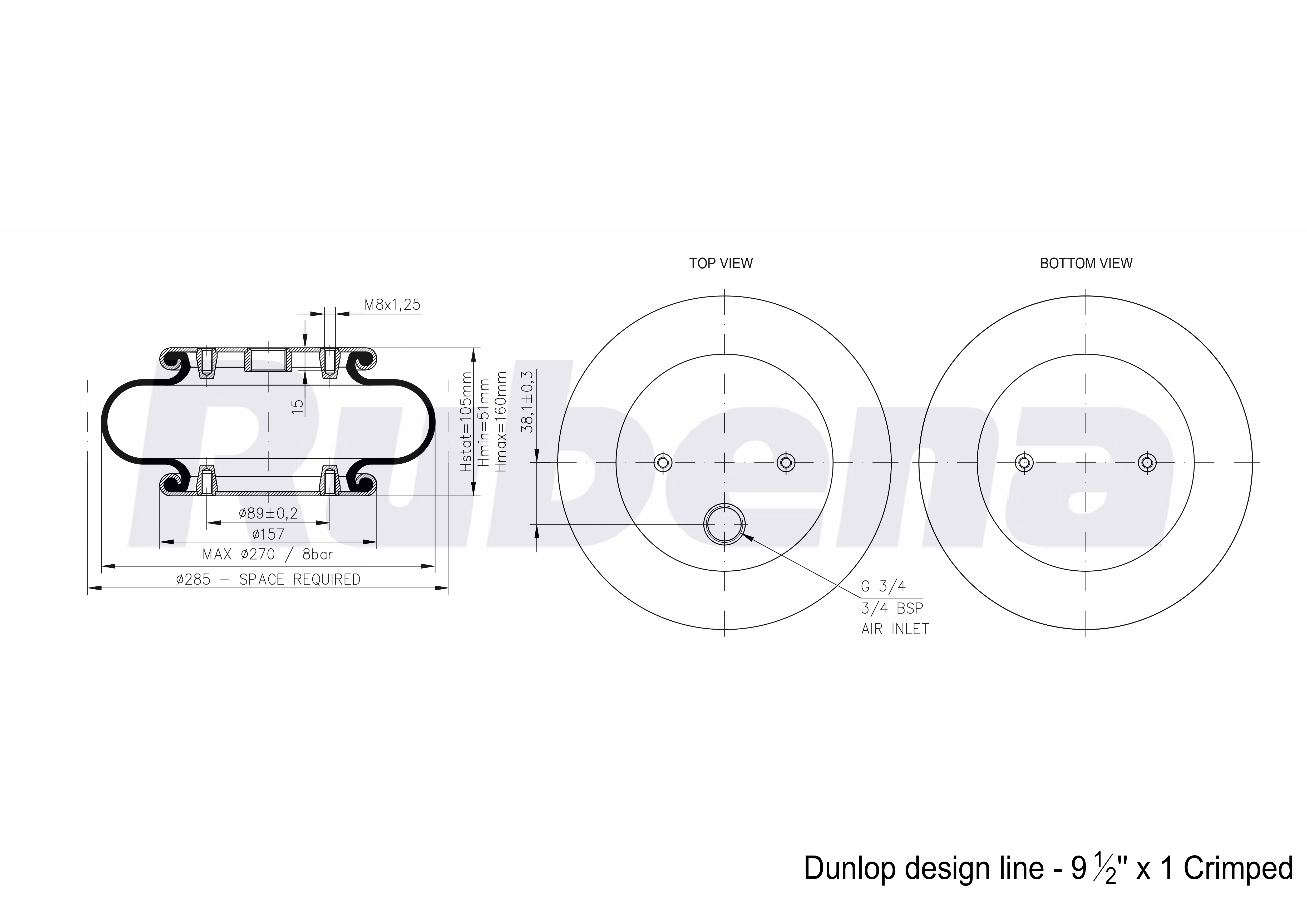

Drawing

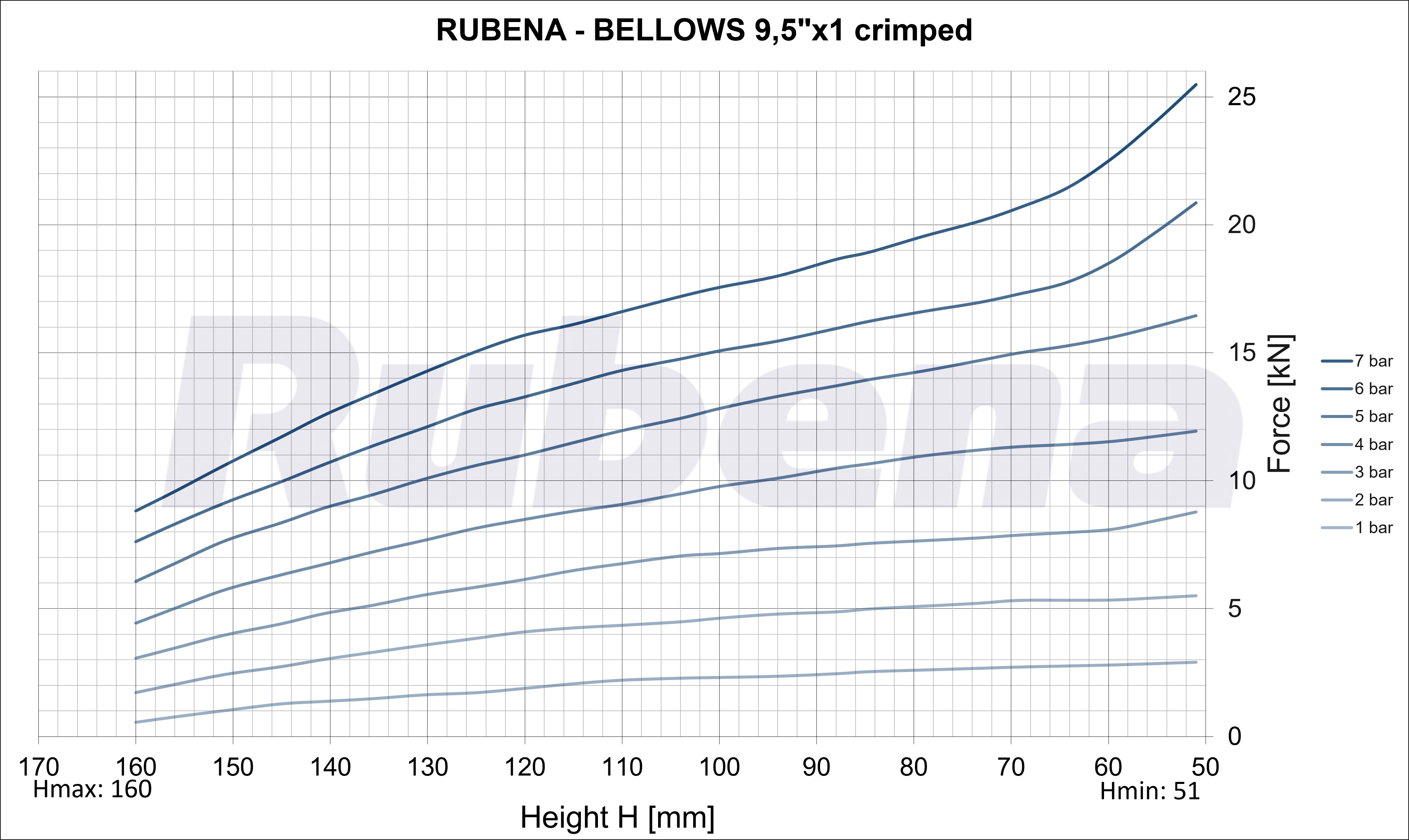

Characteristics chart

Cross Reference

Springride S09202

Adobe Acrobat / Adobe Reader version 2021+ is required to view the PDF 3D model

Download

Characteristics [.pdf]
